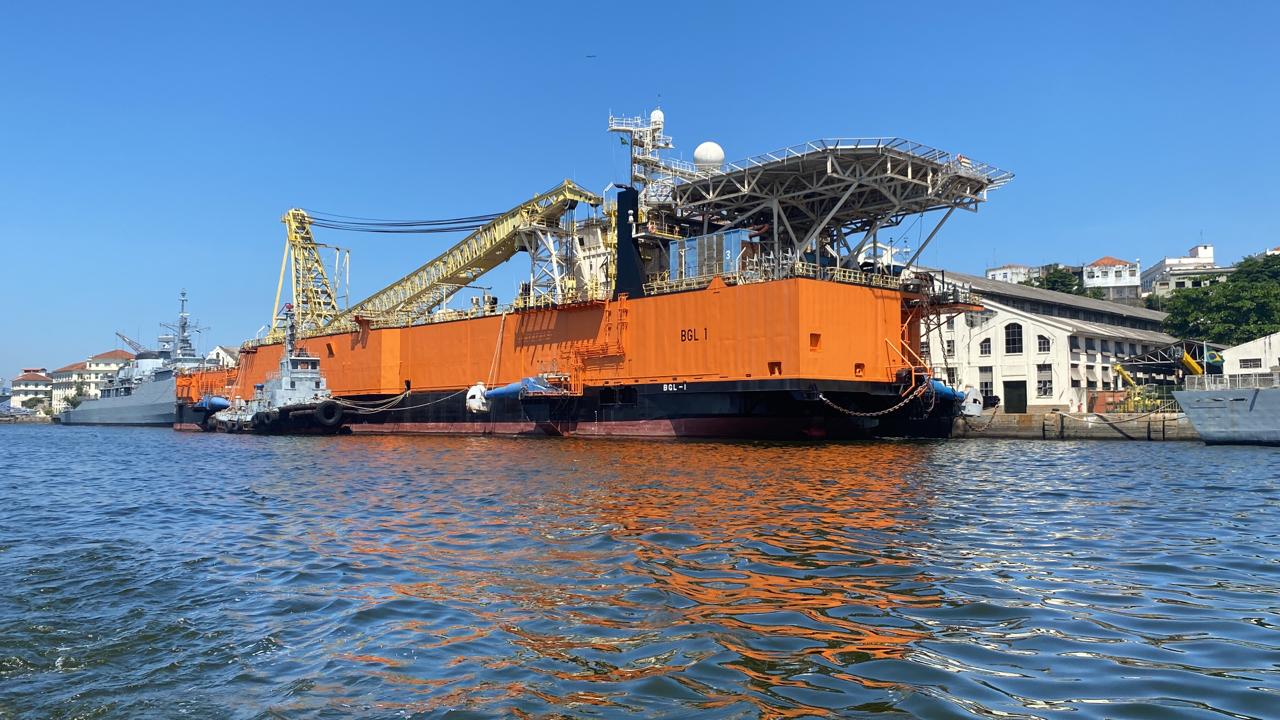

DLB BGL1

This Offshore Derrick Lay Barge was constructed by Mitsui Shipyard Japan.

Capable of Laying pipes up to 60” in offshore waters.

Deck area 1500m².

Main Specifications

Length 121.40 m (400’)

Breadth 30.48 m (100’)

Depth 8.53 m (13,8’)

Deck load 7 a 28 tonnes/m2

Main Crane Clyde DE52 1000tons / 750t fully revolving

Specifications

Propulsion                                                6x 2000hp DP2 Kronsberg System

Power Plant                                              5x Cat 3512B 1288kva each, cat3406

Tensioners                                               2x 160t, SAS GOUDA

A/R Winch                                                320t, SAS GOUDA

Fire-Line                                                   CRC Evans

Stingers 20m, 32m, 48m

Fuel                                                          1.899m³

Potable water                                            3.096m³

Ballastable water                                       7.531m³

Mooring

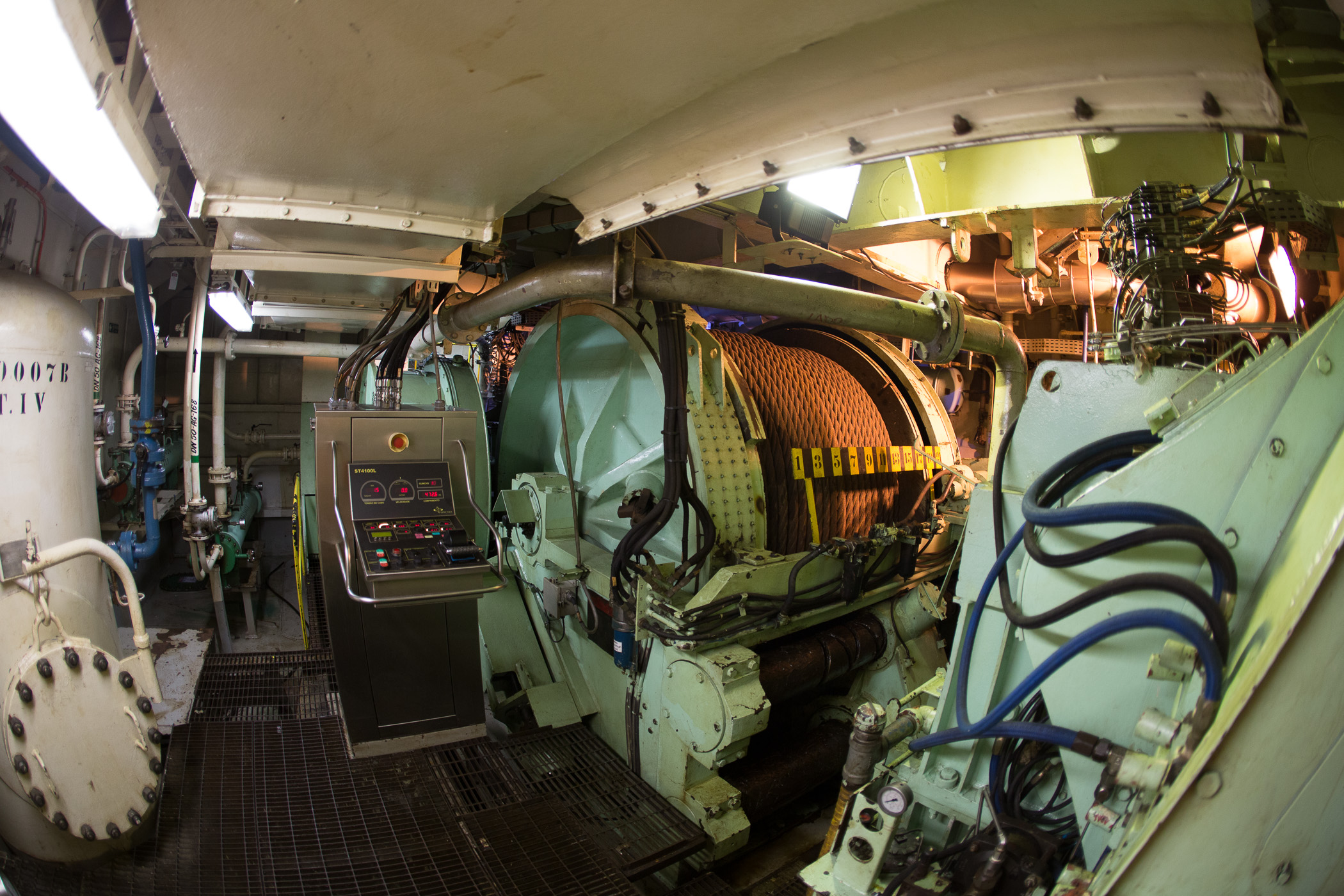

Winches American 3000M2                      10x 1750m 2.1/2”-225tons line pull

Anchors                                                    10 x Patented (10.000 kg each)

Deck Crane

American 9299                                         165tons, 30t @ 21m, 8,5t @ 42m

Boom Length                                             140’

Accommodation

Fixed Accommodation                              up to 280 persons

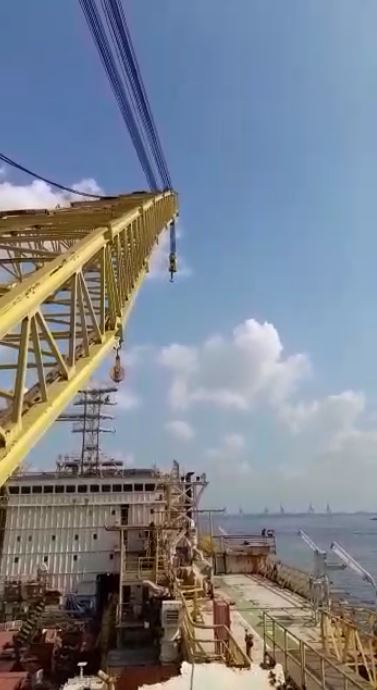

Main Crane Clyde DE52 230+30+15 - load chart

1000t (fixed)                                                  24m                               66m

750t (revolving)                                           23m                               65m

640t                                                             30m                               64m

560t                                                             32m                               63m

500t                                                             34m                               62m

460t                                                             35m                               61m

360t                                                             40m                               60m

Aux 275t                                                      25-48m                          75-70m

Whip 45t                                                      SWL45t                           90
