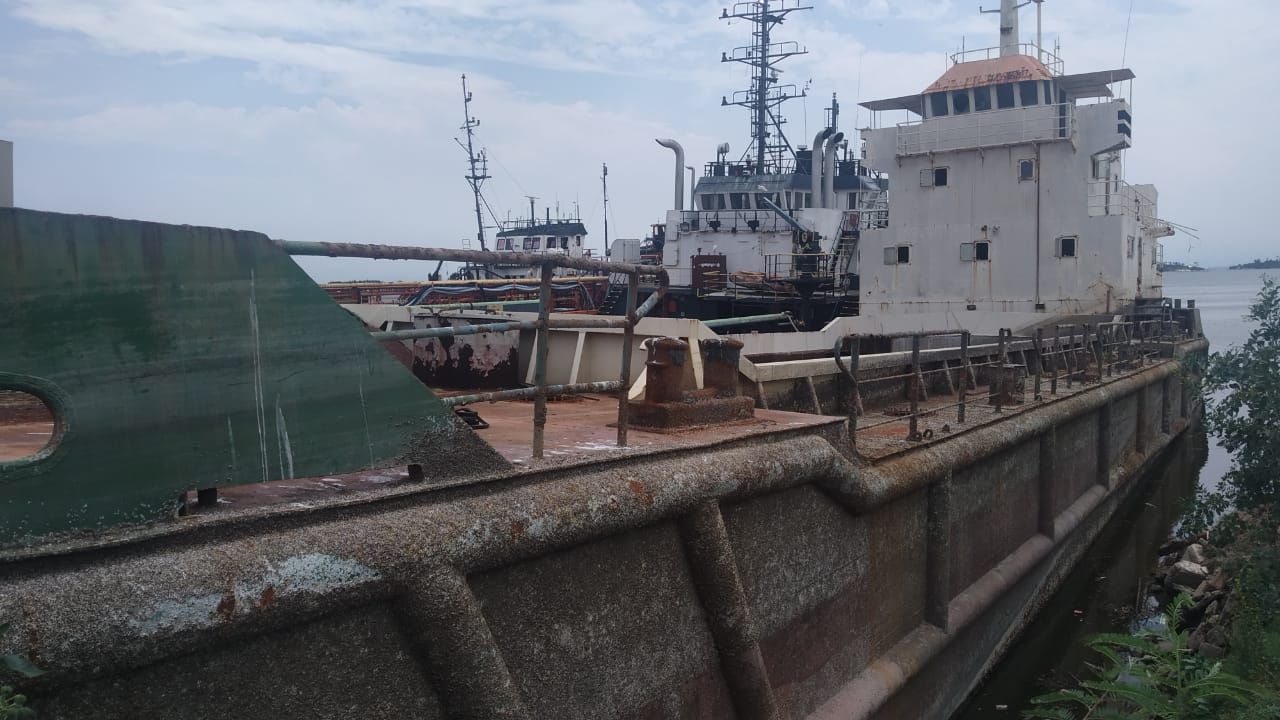

BATELÃO SPLIT SB SPLIT I (EX-HSB GEMINI 52)

Split hull.

Capacity 500m³.

X A1 Split hull barge.

Main Specifications

Length 53.00 m

Breadth 11.00 m

Depth 3.90 m

Capacity 1044tons

Propeller 2 sets 350hp azimutal

Can be set Crane up to 70tons American 5299 on deck to work with clamshell

BATELÃO MODULAR SB ARAGUAIA

Split hull modular.

Capacity 100m³.

X A2 Split modular hull barge.

Main Specifications

Length 26.60 m

Breadth 6.00 m

Depth 1.80 m

Capacity 155tons

Modular 6 pieces.

BATELÃO MODULAR SB TROMBETAS

Split hull modular.

Capacity 100m³.

X A2 Split modular hull barge.

Main Specifications

Length 26.60 m

Breadth 6.00 m

Depth 1.80 m

Capacity 155tons

Modular 6 pieces.

DRAGA RIO GRANDE DO NORTE - DREDGE

Booster Scania 8".

Length 12.00 m

Breadth 4.00 m

Depth 1.20 m

Road transportable

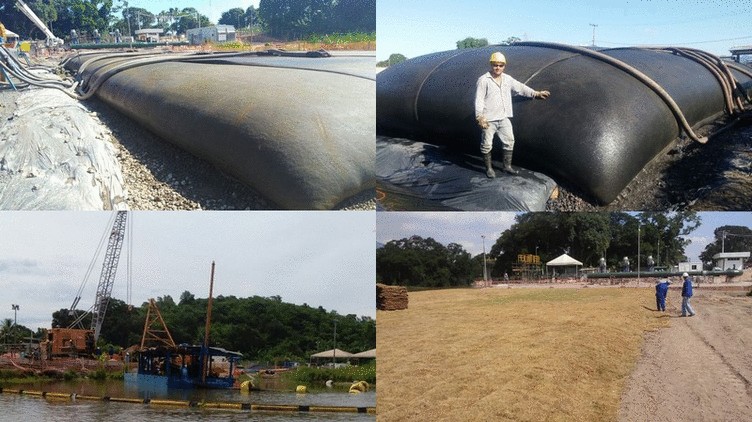

Can be used with Geotextile geobag consult us

DRAGA AUTOTRANSPORTADORA VITÓRIA - DREDGE

Booster Scania 8".

Length 18.00 m

Breadth 6.00 m

Depth 2.40 m

Capacity 100m³

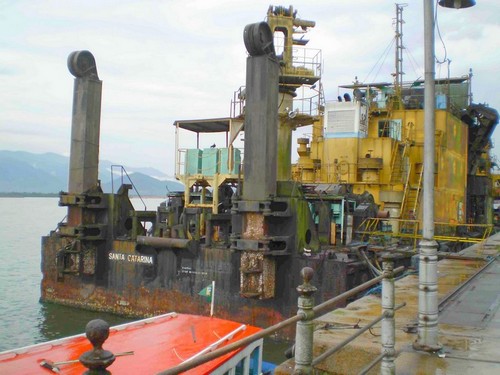

DRAGA DE ALCATRUZES SANTA CATARINA - BUCKET LADDER DREDGE

Capacity 1100m³/h

Length 68.00 m

Breadth 12.00 m

Depth 4.50 m

Maximum depth 20m

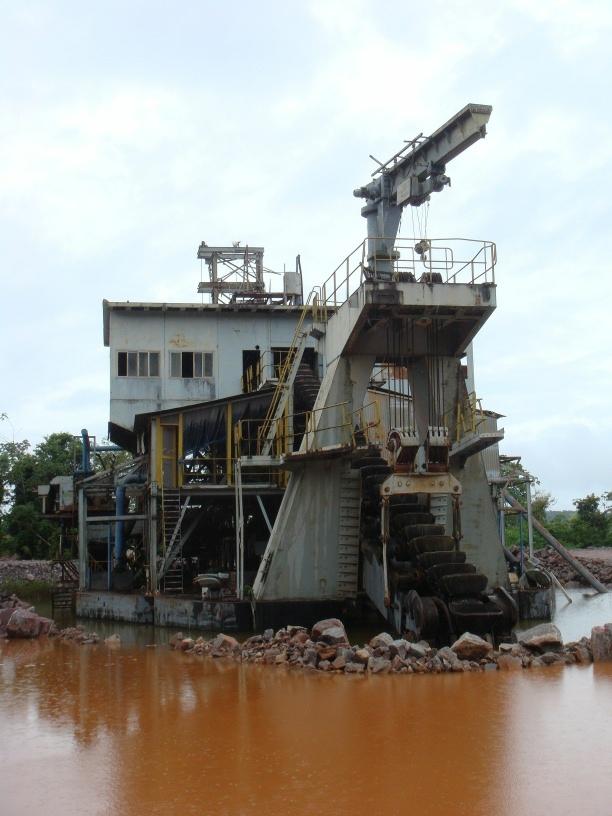

DRAGA DE ALCATRUZES MODULAR PP175 - MODULAR BUCKET LADDER DREDGE

Capacity 450m³/h

Length 34.00 m

Breadth 12.50 m

Depth 2.40 m

Maximum depth 13m

MODULAR SPUD BARGES FOR CLAMSHELL CRANE OR BACKHOE EXCAVATOR

16 (sixteen) modular spud barges with 7,5m x 10,6m

- to use with backhoe excavators up to 25t long arm

5 (five) modular spud barges with 13,2m x 23m

- to use with clamshell cranes up to 125tons and 5 jd³

MODULAR SPUD BARGES FOR 65T BACKHOE EXCAVATOR

modular spud barges with 10m x 13m x 2,40m depth

- to use with backhoe excavators up to 65t

Backhoe excavator Akerman EC650 4,4m³ bucket

Can be combined with Damen Pump DOP250 Dredge

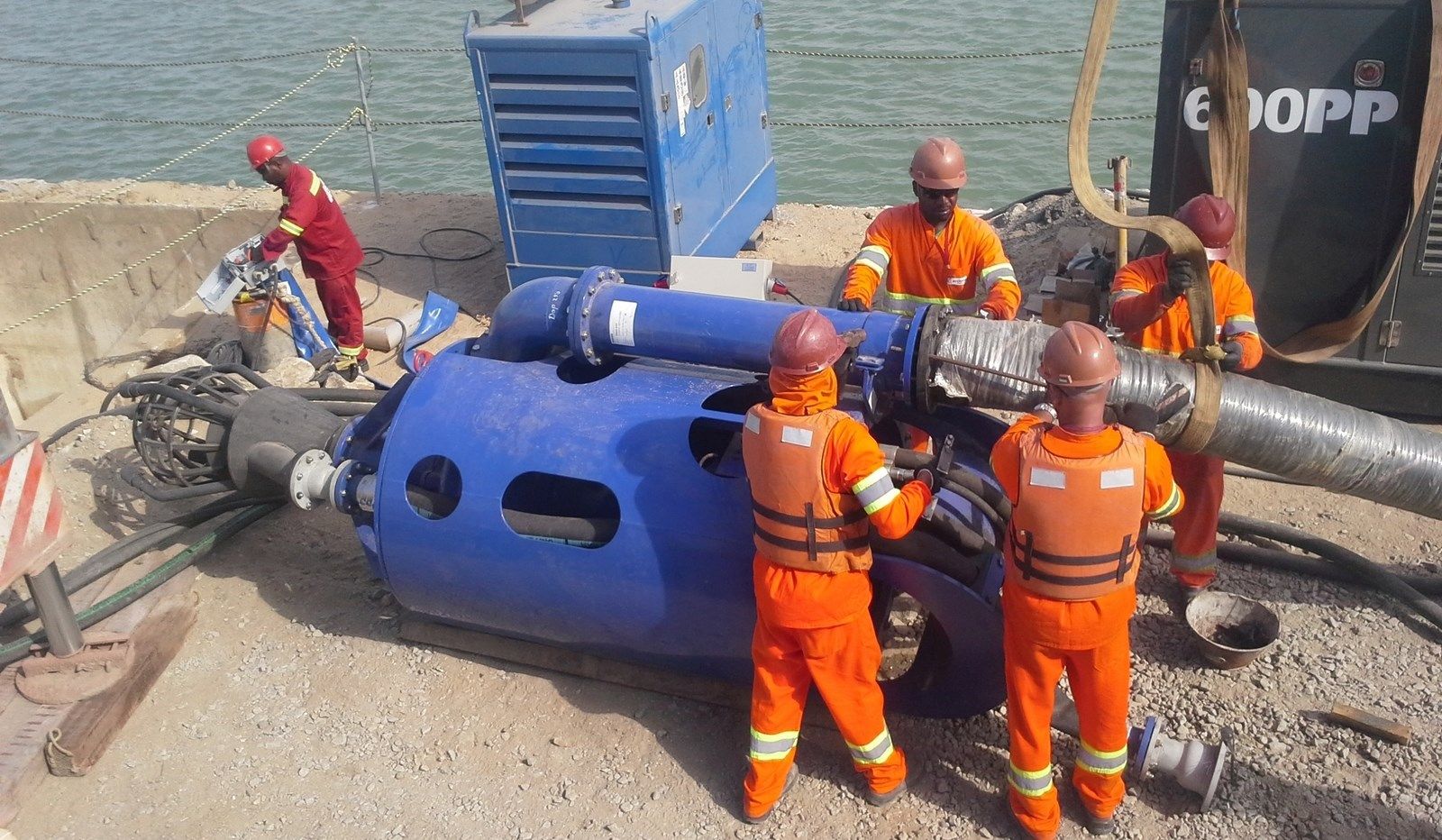

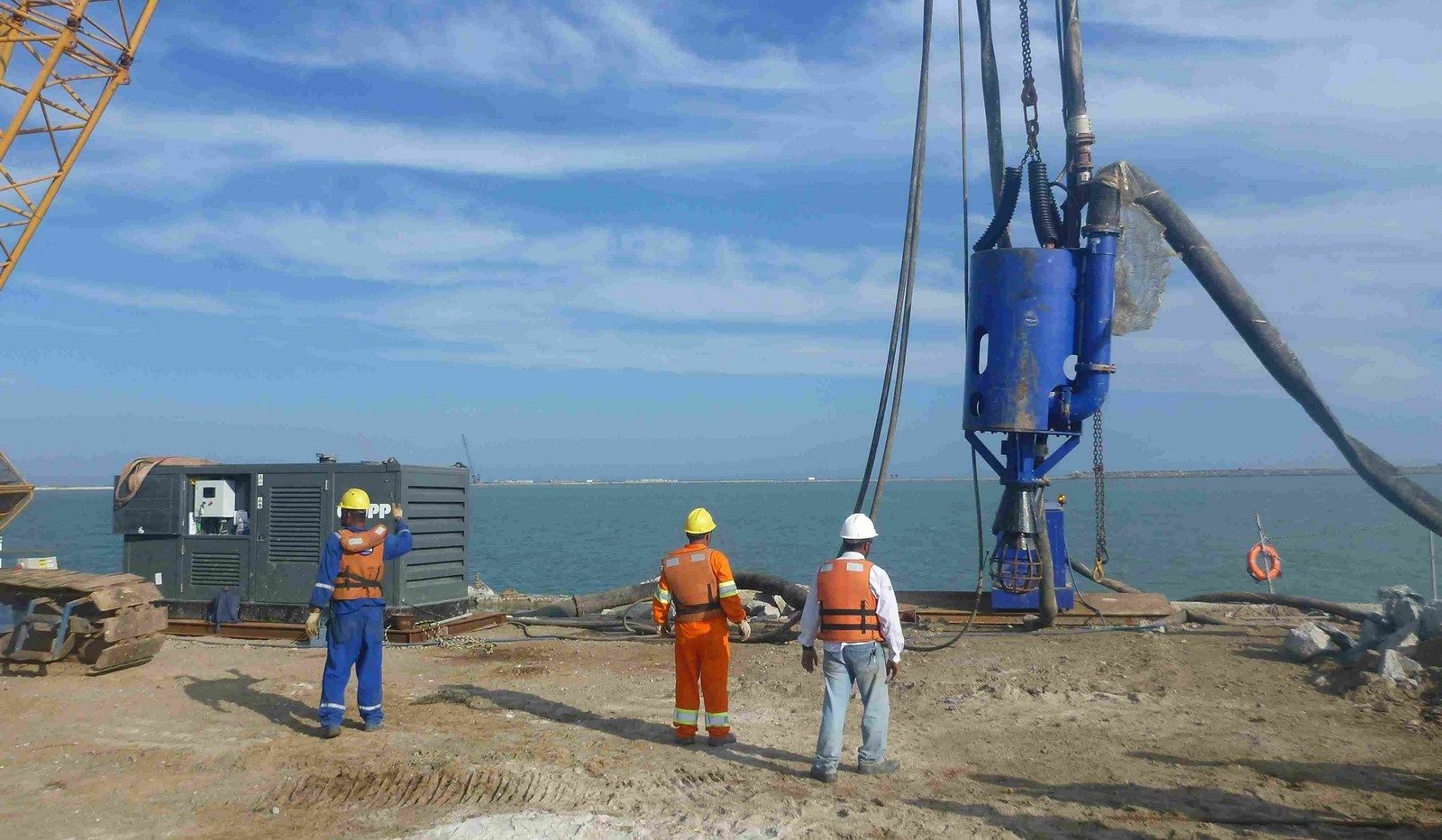

2x (TWO) DAMEN PUMP DREDGES DOP250 / 2 x (DUAS) BOMBAS DE DRAGAGEM DAMEN DOP250

250mm diameter

1250m³ per hour rate flow

up to 30% solids.

Above 400 meters cubic per hour solids.

Hydraulique PTO ICE modelo 600, Engine CAT570hp 350Bar 670L/min

Pump Damen DOP250 operational weigth 5200kg x 3,65m.

Jetwater 125mm, 300 m³/h / Desagregador jato de água 300m³/h.

Dredging distance up to 3000meters
