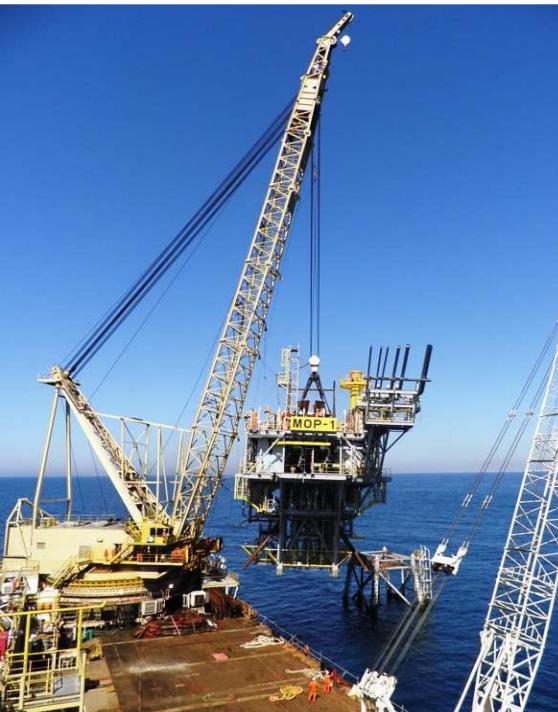

BGL1

DP2

Deck area 1500m².

Main Crane Clyde DE52 230+30+15 1000tons / 750t fully revolving

1000t (fixed)                                                 24m                               66m

750t (revolving)                                           23m                               65m

640t                                                             30m                               64m

560t                                                             32m                               63m

500t                                                             34m                               62m

460t                                                             35m                               61m

360t                                                             40m                               60m

Aux 275t                                                      25-48m                          75-70m

Whip 45t                                                      SWL45t                           90m

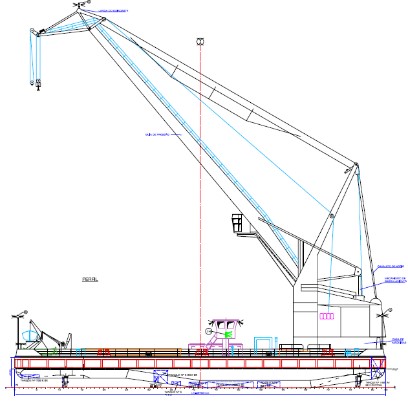

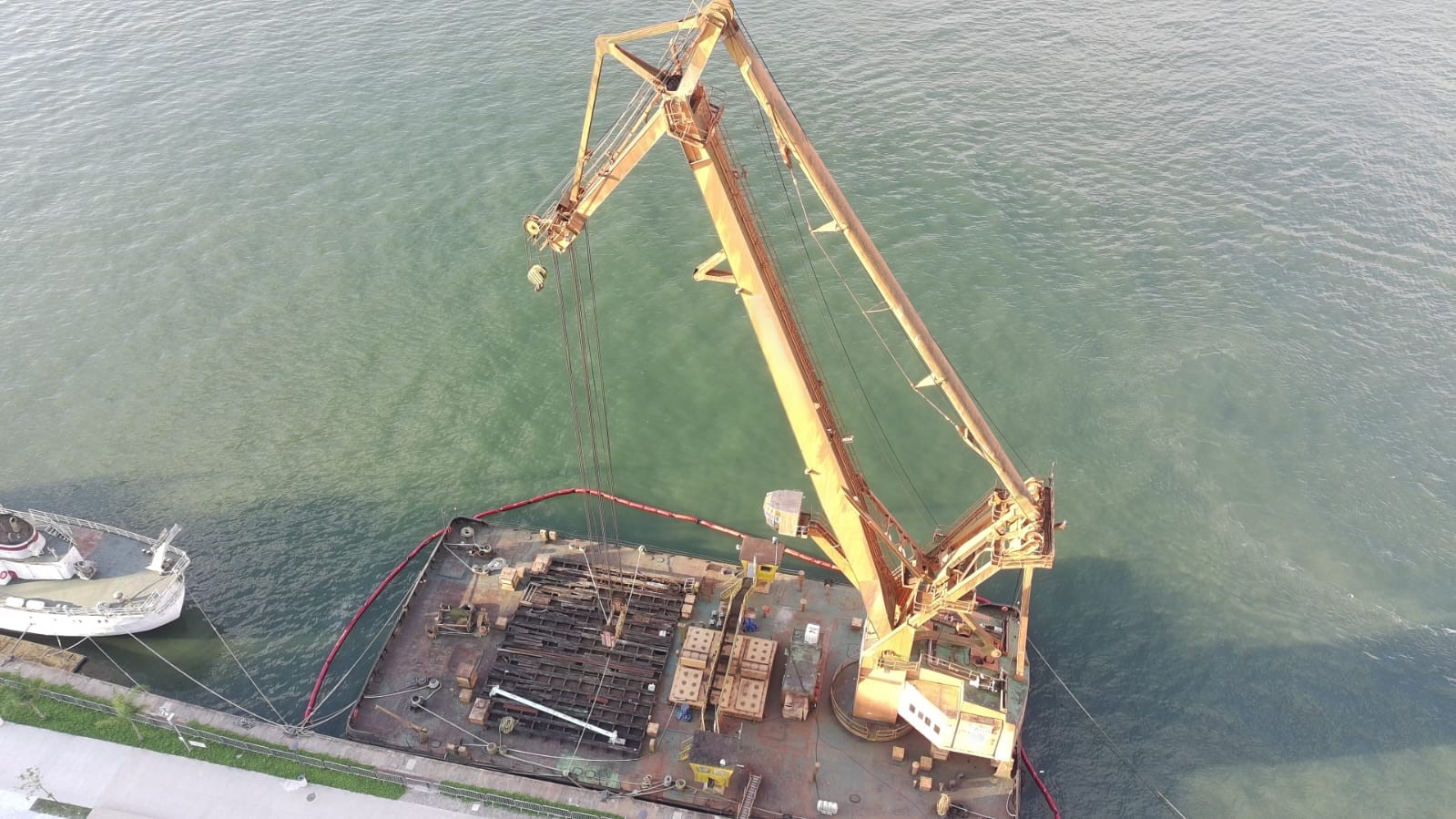

CÁBREA SB PARÁ

Self propelled, 2 schottel azimutal 1000hp

Deck area 300m².

Main Crane Krupp Ardelt 250t fully revolving

                                                                  distance from fence        height

250t (fixed)                                                 8m                               38m

250t (revolving)                                          4m                               38m

200t (fixed)                                                11m                               38m

200t (revolving)                                          7m                               38m

150t (fixed)                                                17m                               37m

150t (revolving)                                       12,3m                              36m

105t  (fixed)                                               36m                               35m

80t (revolving)                                            36m                            35m

Aux 50t                                                       38m                             38m

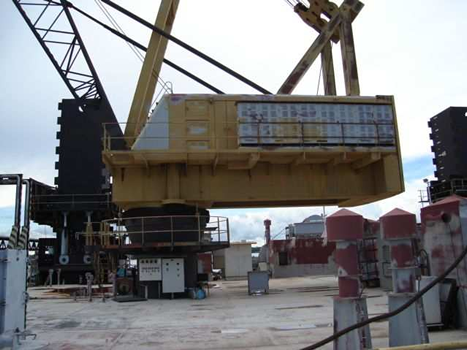

Ph Torque

Main Crane PH Torque 155tons

150t (fixed)                                                10m                               50m

75t (revolving)                                           20,6m                             46,9m

60t                                                             25m                               44,5m

40t                                                             34m                               37,5m

30t                                                             40m                               30m

20t                                                             46m                               18m

Aux 15t                                                      10-48m                          52m

American 9750 Offshore

Main Crane American 165tons  Boom 140ft (42m)

94t (fixed)                                                7,6m                               42m

65t (revolving)                                           9,1m                             42m

60t                                                             12m                               42m

43t                                                             15m                               41m

33t                                                             18m                               40m

20t                                                             27m                               34m

Aux 8t                                                      7,6-42m                          42m

Bucyrus MK60 / Letourneau PCM120

Main Crane 120tons  Boom 120ft (36m)

43t (revolving)                                           7,6m                             36m

35t                                                             12m                               36m

27t                                                             15m                               35m

21t                                                             18m                               34m

7,6t                                                             33m                               28m

Aux 3t                                                      7,6-36m                          36m

Floating Crane (Cábrea) SB3R

Length 30.00 m

Breadth 11.00 m

Depth 2.40 m

1 crane American 5750 80t with 100' boom

Draft 0.60 m
