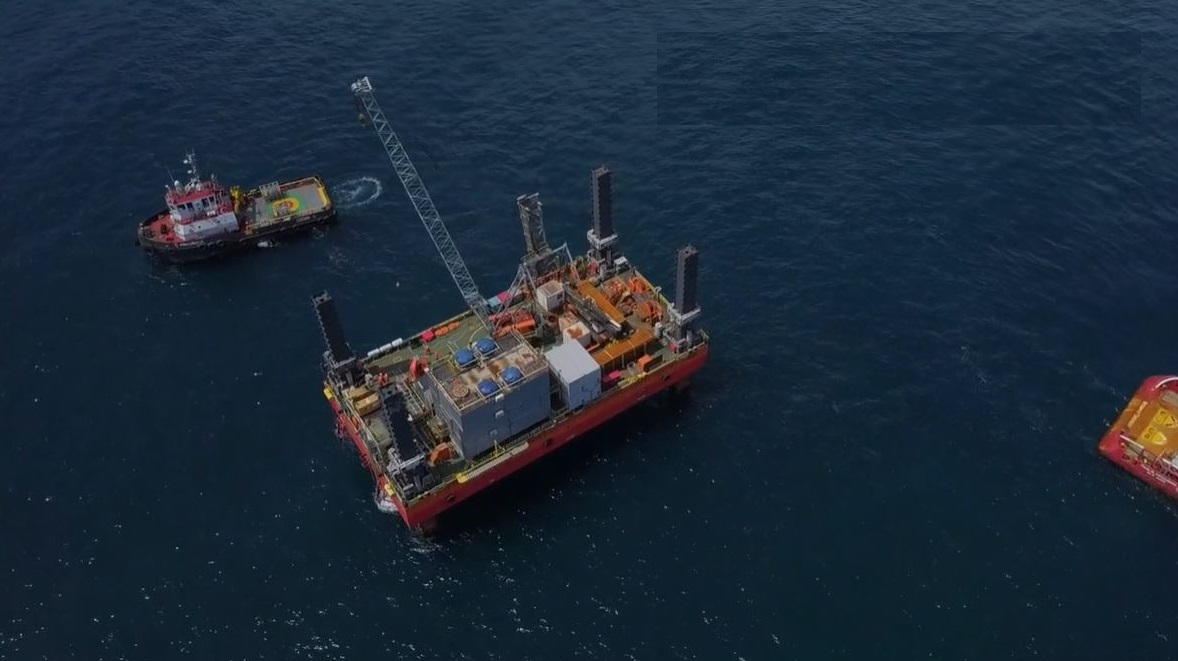

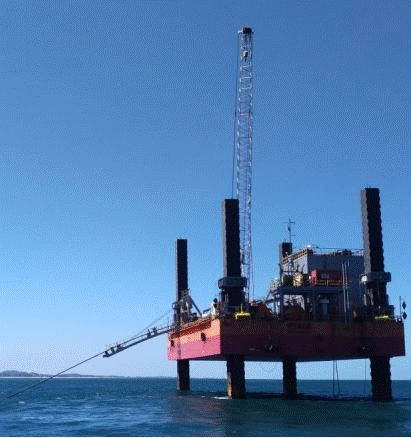

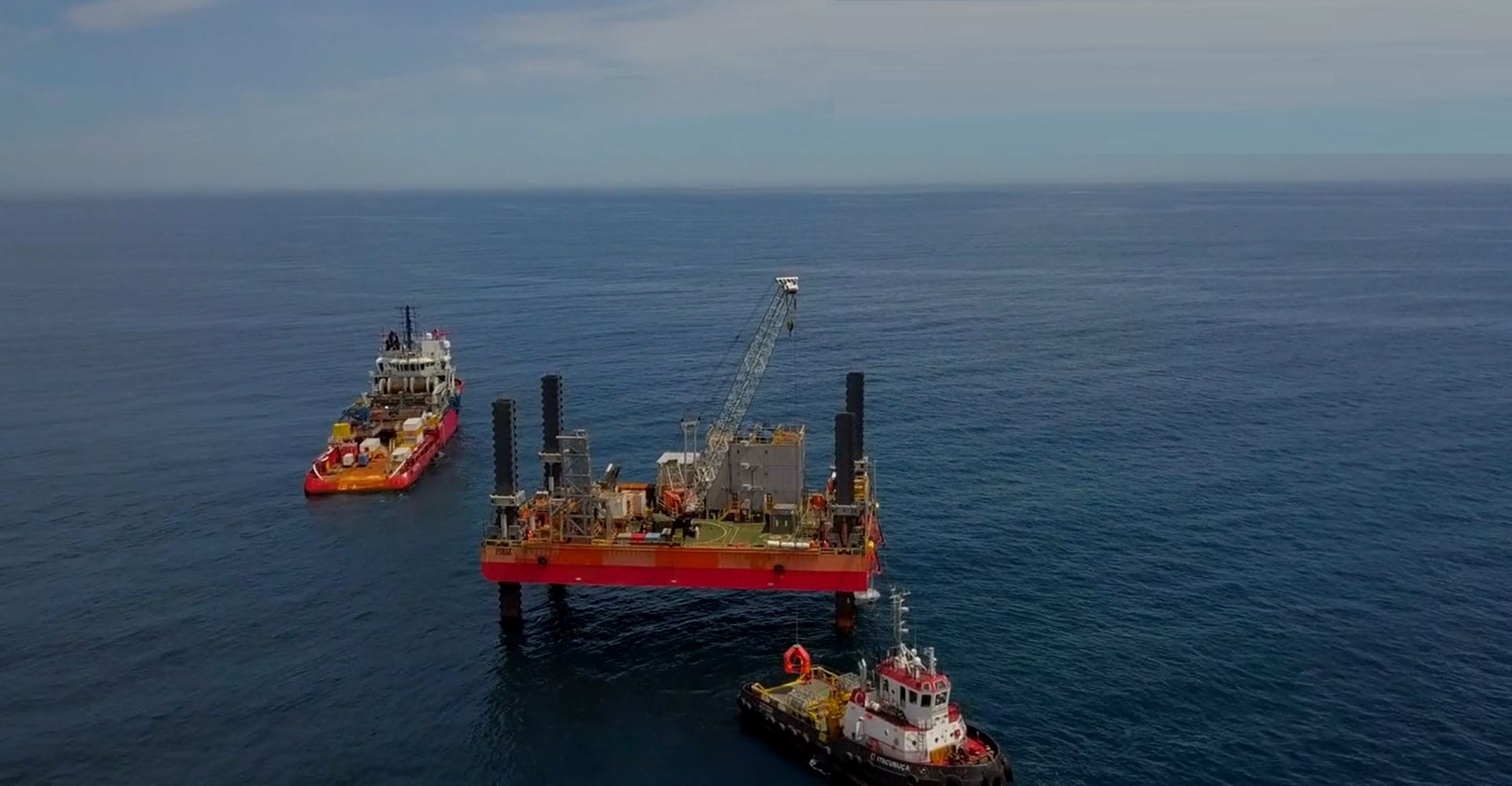

JACKUP BARGE PIATÃ

IHC Gusto M.V. Holland designed this Offshore Jackup.

Ideal for payloads up to 600 tons Jacking / 1300tons Hold. .

Deck area 650m².

RBNA CLASS X A1 Self Elevating Barge.

Main Specifications

Length 46.40 m (153’)

Breadth 24.10 m (80’)

Depth 4.20 m (13,8’)

Deck load 6 tonnes/m2

Main Crane American 9750 Offshore 165tons

Specifications

Spud Legs Square 1,80m                      4sets x 50meters length (can be upgraded to 80m)

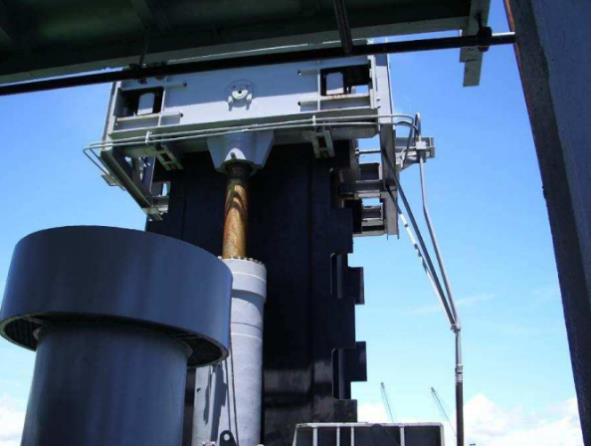

Hydraulic system                              2x 500t cylinders 2m stroke per leg

Jacking capacity                                1000 tons (each spud)

HPU                                                 4x 50cv, 6000psi maximum

Working pressure                            2500psi unitarily controlled

                                                        Preload 4000psi - 10’

Jacking system                                IHC Gusto

Payload                                          600ton Jacking / 1300 ton hold

Jacking speed                                                14meters/hour

Mooring

Hydraulic Winches                                    4x 500m 1.1/2” (35tons line pull / 70 tons brake)

Anchors                                                    4 x Us Navy (10.000 lbs)

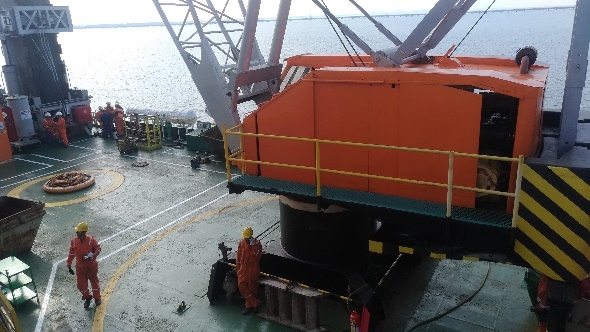

Crane

American 9750 Offshore                           165tons, 30t @ 21m, 8,5t @ 42m

Boom Length                                             140’ - 290’

Accommodation

Fixed Accommodation                              up to 46 persons

                                                                 (option to be increased to 120)

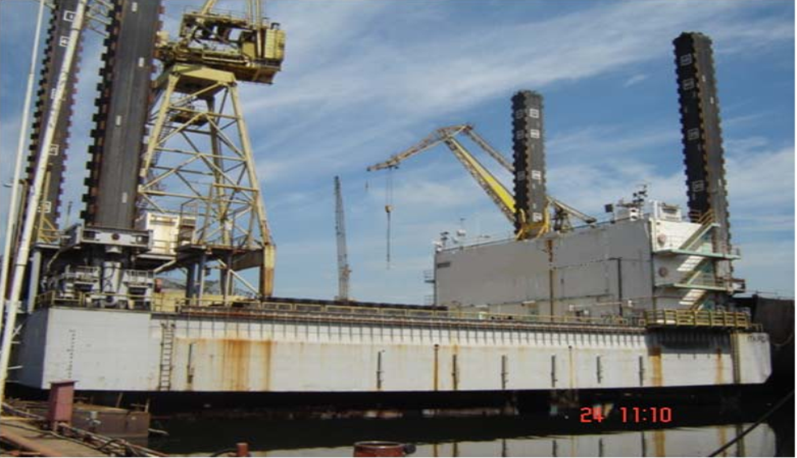

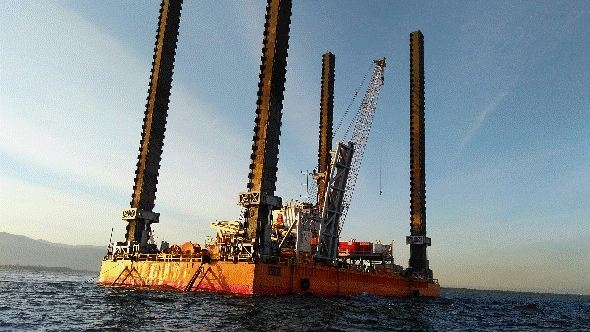

JACKUP BARGE ITAPOÃ

IHC Gusto M.V. Holland designed this Offshore Jackup.

Ideal for payloads up to 600 tons Jacking / 1300tons Hold. .

Deck area 650m².

X A1 Self Elevating Barge.

Main Specifications

Length 46.40 m (153’)

Breadth 24.10 m (80’)

Depth 4.20 m (13,8’)

Deck load 6 tonnes/m2

Specifications

Spud Legs Square 1,80m                      4sets x 55 meters length (can be upgraded to 80m)

Hydraulic system                  2x 500t cylinders 1m stroke per leg

Jacking capacity                                1000 tons (each spud)

HPU                                                 4x 50cv, 6000psi maximum

Working pressure                            2500psi unitarily controlled

                                                        Preload 4000psi - 10’

Jacking system                                IHC Gusto

Payload                                          600ton Jacking / 1300 ton hold

Jacking speed                                                7 meters/hour

Mooring

Hydraulic Winches                                    4x 500m 1.1/2” (35tons line pull / 70 tons brake)

Anchors                                                    4 x Us Navy (10.000 lbs)

Operating / Survival Conditions

Máx Water Depth                                         40m                               30m

Wave Height / Period                                   1m / 8s                          8,6m / 5s

Wind Speed                                                  40km/h                          120km/h

Surface Current                                            2m/s                              10m/s
